Model: BC-LS380IP

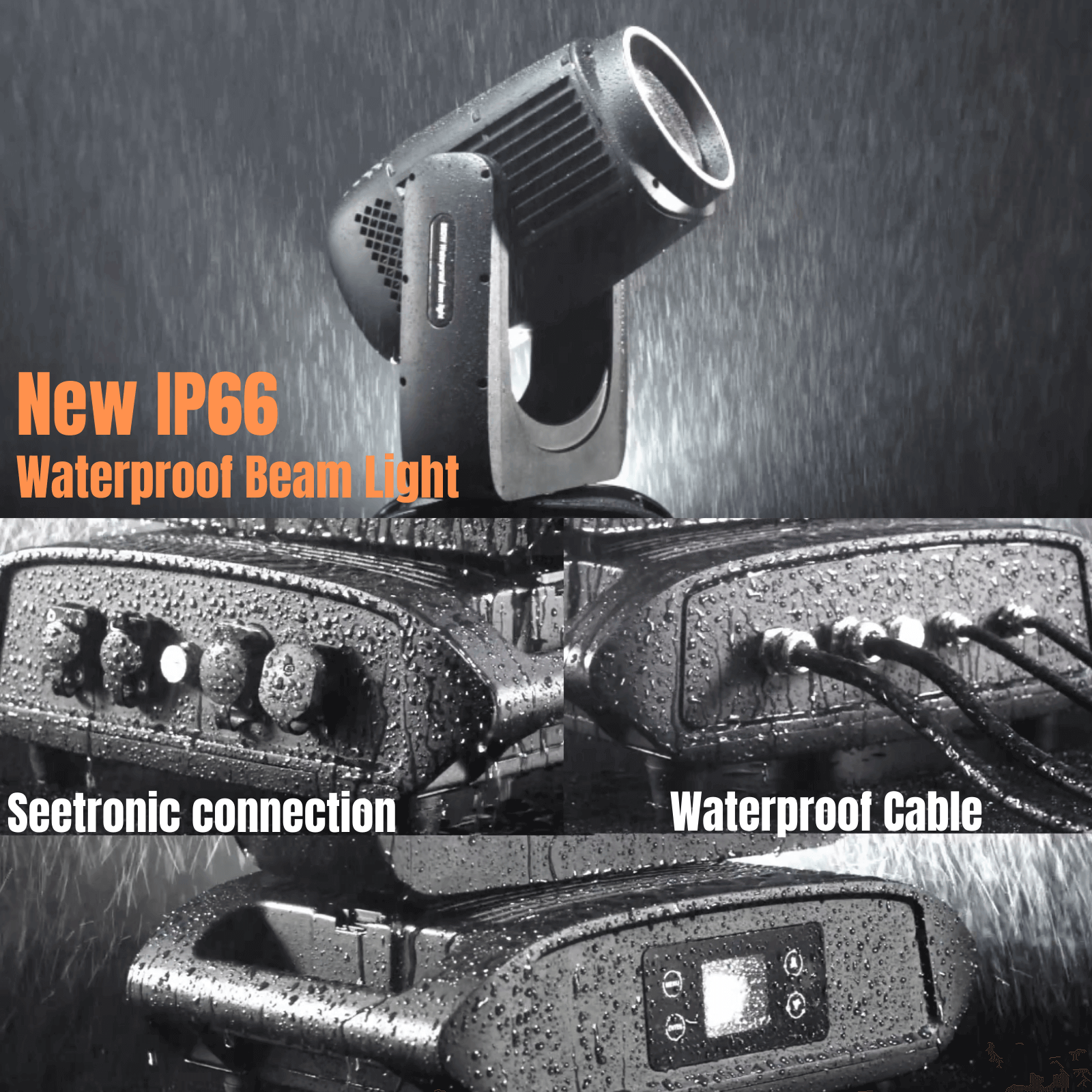

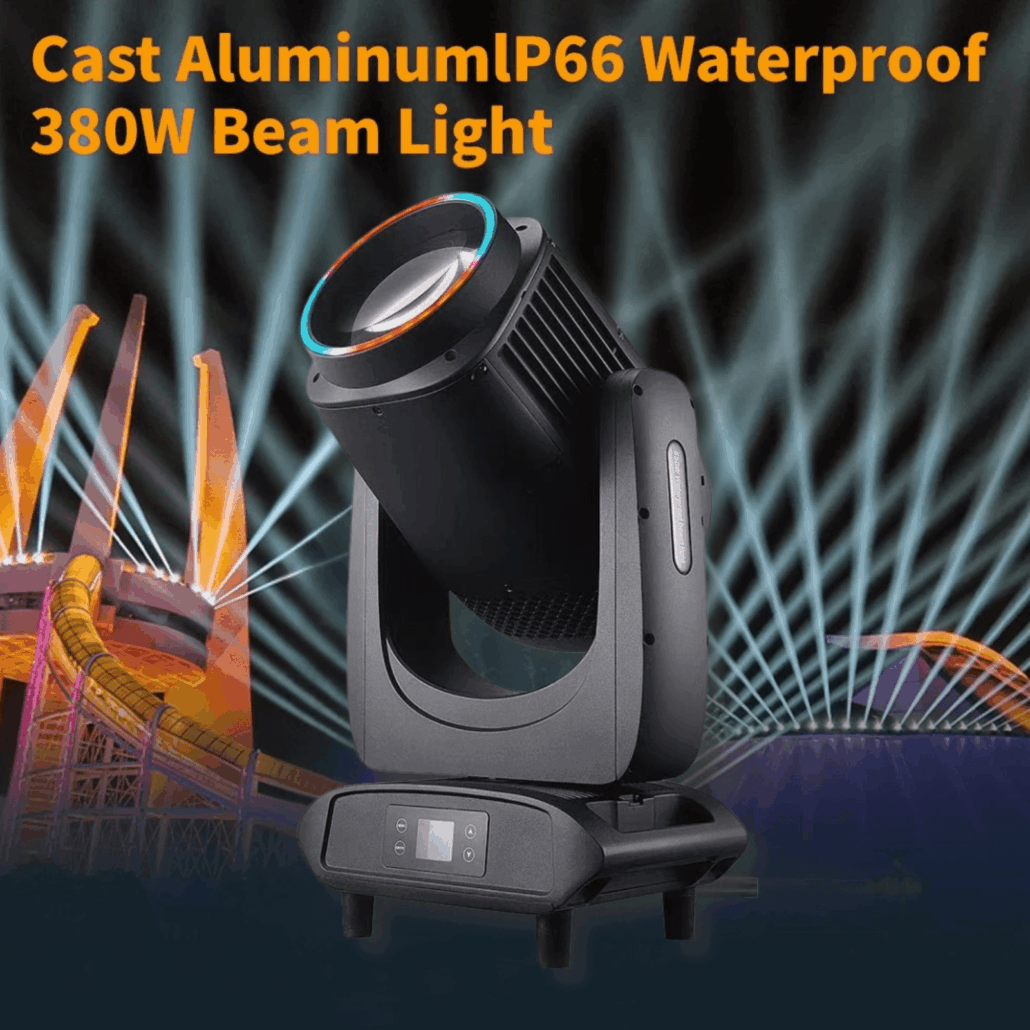

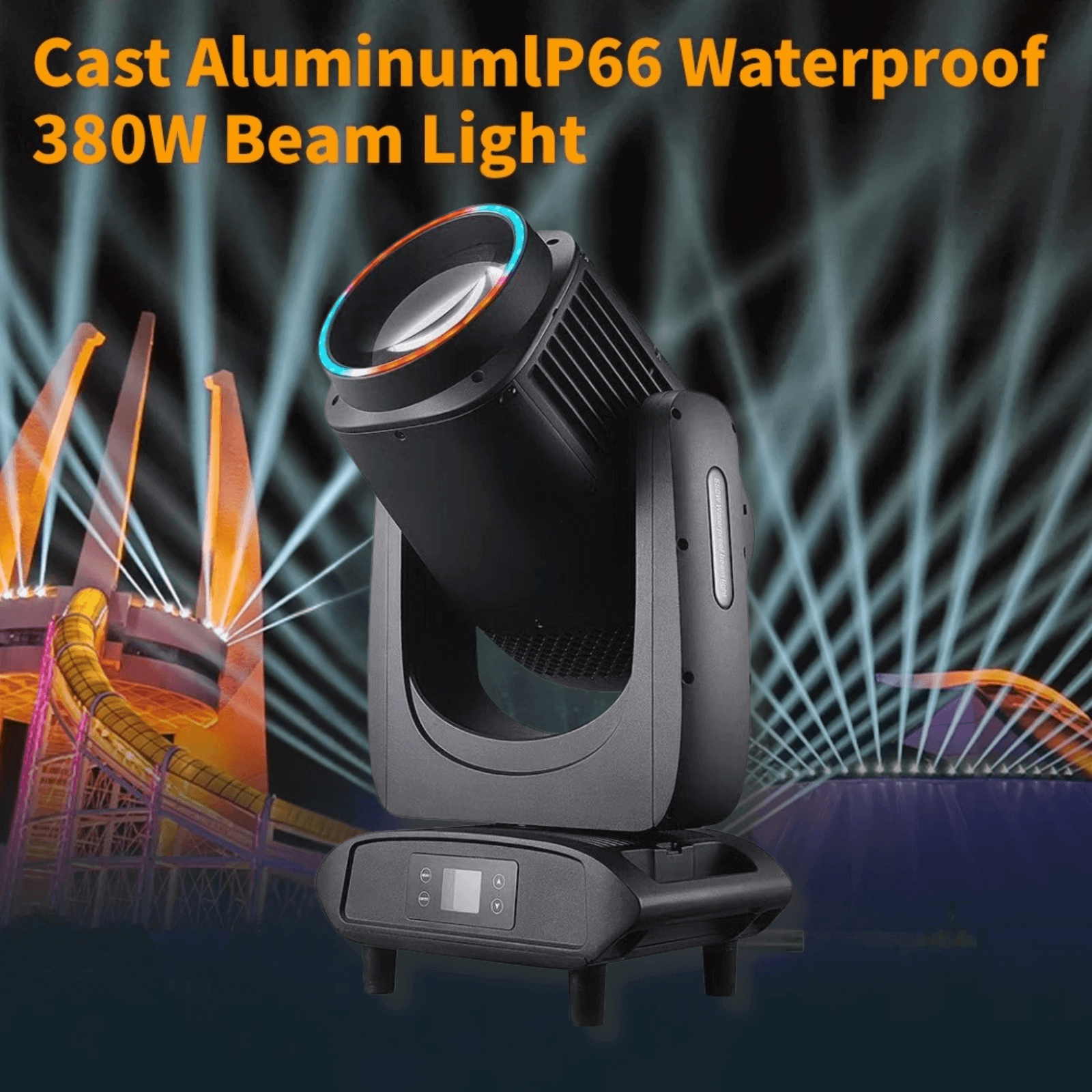

IP66 380W Waterproof Beam Moving Head Light
-
Product Features:
Fixture Material: High-end fully national standard die-cast aluminum housing. No plastic parts, making it suitable for harsh outdoor environments such as heavy rain, high altitude, strong sandstorms, coastal areas, extreme cold, and heat.
Waterproof Rating: Withstands 360° splash impact from all directions, achieving a true IP66 waterproof rating.
LED Waterproof Beam Light: excels in optics, structure, and appearance, meeting high industry standards. It adopts advanced high-brightness light sources, optical technology, and rigorous industrial design to ensure perfect lighting performance.
Technical Parameters:
Model: IP66 380W Waterproof Beam Moving Head Light
Voltage: 110V–240V, 50–60Hz
Light Source Type: Laser light source
Power: 450W/550W
Color: 13 + 1 + rainbow effect + frost
Gobo wheel: 13 fixed patterns + 1 white
Focusing: Electronic linear high-definition dynamic focusing with high-density glass optical lens
Linear Dimming: 0%–100% linear dimming
Beam Angle: 0–1.8°
Channels: 16/20 international standard DMX512 channels
Lens Diameter: 165mm
XY Motor: Three-phase electric drive, powerful, faster, more stable, and quieter
Housing: Full die-cast aluminum construction
Waterproof Rating: IP66
Control Methods: DMX512, RDM, self-operation, master/slave self-operation
Prism: 8-facet prism / 8 + 16 facet prism overlay with rotation and macro function
Display: LCD display adaptable to different installation positions
X/Y Movement: The waterproof light can perform 540° horizontal or 270° vertical scanning, with fast and smooth movement.
Intelligent Photoelectric Reset Correction System: Automatically restores the original position in case of accidental misoperation. Additionally, it features horizontal and vertical locking buttons for easier maintenance and transportation.
Dimensions & Weight:
Fixture Dimensions: 328 × 220 × 603 mm
Gross weight:20 kg
Features
Double gobo wheels, spot.beam effect with zoom function
