Model: BC-LS1940IP

Waterproof 19X40W MINI Zoom Wash LED Moving Head Ligh

Product Features:

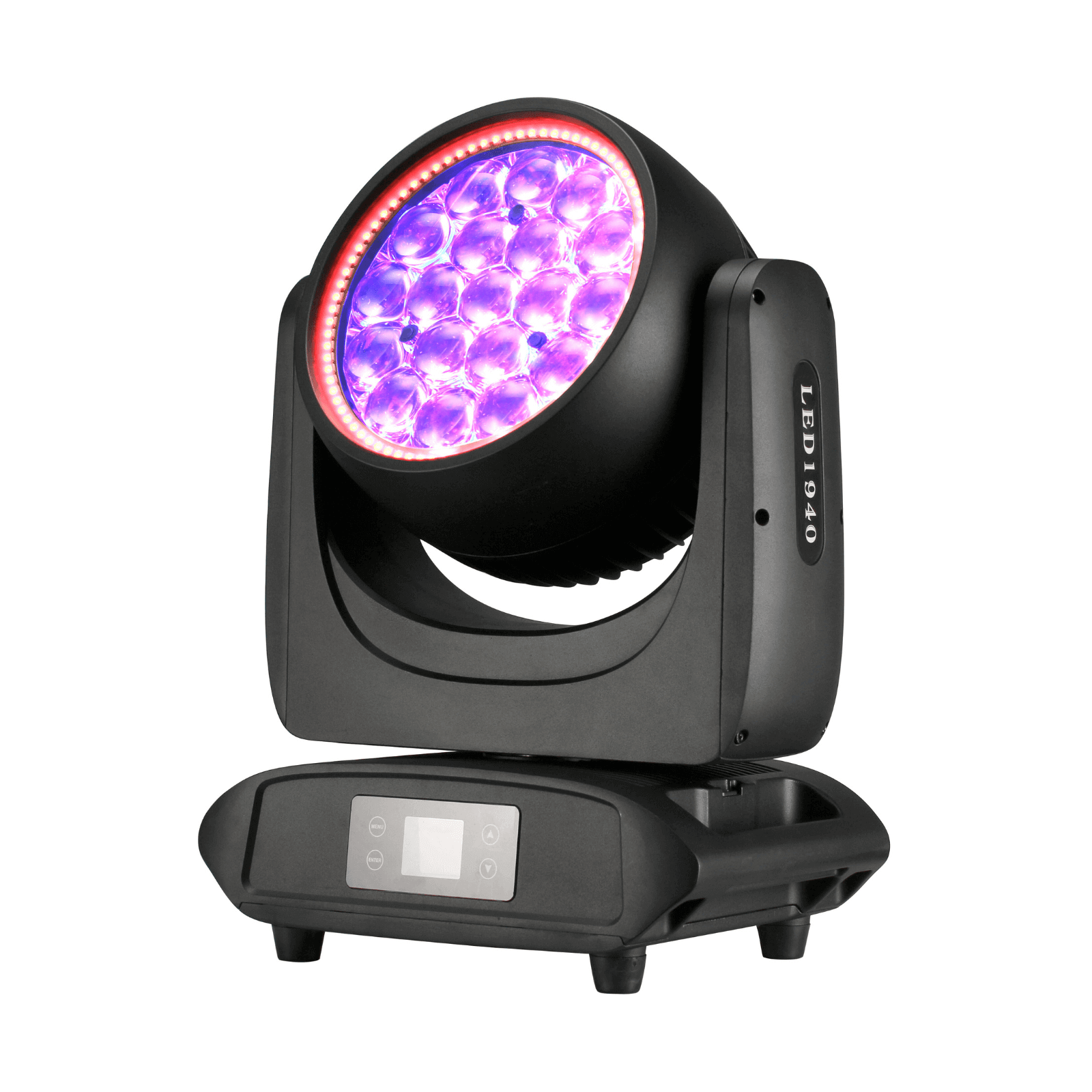

The Mini Moving Head Wash Light is compact, lightweight, and powerful, offering energy-saving and eco-friendly performance. It combines powerful beam and wash effects into one fixture. With 19 × 40W RGBW 4-in-1 LEDs, it produces uniform color mixing and rainbow effects, creating fast and intense beams that enhance stage dynamics. Multiple channel modes are available, and DMX/RDM control allows individual LED addressing, enabling lights to dance to the music. Lighting technicians can flexibly adjust colors, angles, and effects. A linear zoom system with an adjustable angle of 3.5°–50°, multiple-speed strobe effects, and smooth 0–100% dimming allow for a variety of dynamic lighting effects, making it suitable for diverse stage applications. Compact and quiet, it offers fast operation and soft light ideal for large-area stage rendering and creating dreamy colors for performances and cultural tourism events.
Technical Parameters:

Light Source: 19 × 40W RGBW 4-in-1 LEDs | Color: RGBW seamless color mixing, uniform spot

LED Lifespan: ≥ 50,000 hours

Power: 800W

Input Voltage: 100V–240V, 50/60 Hz | Aperture: 80 × 5050 SMD LEDs

Zoom Angle: 4°–60° smooth and quiet linear motor-driven zoom system

Optical System: High-definition optics with heat-resistant glass light guide | Fast and smooth motorized zoom | Uniform and soft wash effects | Excellent color mixing

Linear Dimming: 0–100% linear dimming | Built-in 6 static and dynamic macro effects with adjustable speed

High-Speed Strobe: 1–25 times/second high-speed LED strobe/shutter effect | Adjustable speed | Preset diverse/random strobe/dimming pulse effects

Control Channels: 14CH/25CH/30CH/54CH/58CH

Control Methods: DMX512, RDM, Master/Slave, Sound-Activated, Auto Mode

Display System: 1.8-inch TFT color LCD touch screen | 4 function keys | 180° reversible LCD display | 60-second auto sleep design | DMX signal indicator | Chinese/English language switch

Housing Material: High-quality lightweight national standard die-cast aluminum shell | No plastic parts | Suitable for harsh outdoor environments, including heavy rain, high altitude, sandstorms, coastal areas, extreme cold, and heat

Waterproof Rating: Withstands 360° splash impact | IP65 certified

Horizontal Movement: 540° (16-bit precise positioning)

Vertical Movement: 270° (16-bit precise positioning)

Maximum Linking Quantity:

220V: Up to 4 units (requires 2.5 mm² cable)

120V: Up to 2 units (requires 2.5 mm² cable)

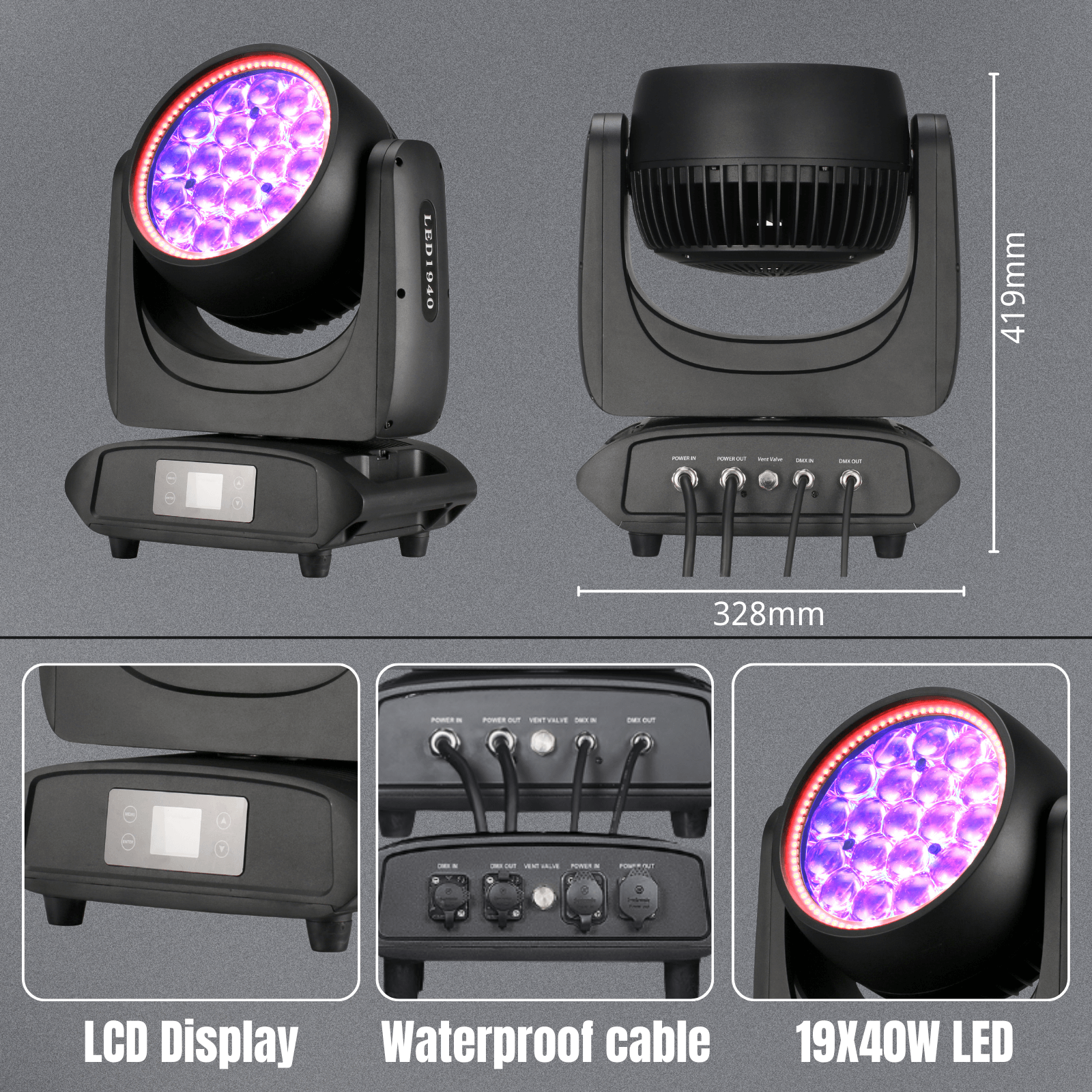

Product Dimensions: 328 × 252 × 419 mm

Net Weight: 14 kg

Carton Packaging: 428 × 352 × 519 mm | Gross Weight: 16.5 kg
